400-1200 mm Single Screw DWC Pipe Manufacturing Line

Name: 4001200 mm Single Screw DWC Pipe Manufacturing Line
Brand: SUBA
Price: 1 USD

Quality 400-1200 mm Single Screw DWC Pipe Manufacturing Line for sale

Place of Origin : Shandong, China

Brand Name : SUBA

Packaging Details : Film packaging, wooden pallet etc

Supply Ability : 2 units per month

Price : Customized

Model Number : SL1000

Certification : CE

MOQ : 1

Delivery Time : 30-120 work days

Payment Terms : L/C, T/T

Production range : ID400-OD1200mm

Cooling : Water cooling

Moulds number : 38 pairs

Moulds material : Aluminium alloy

Screw L/D Ratio : 36:1

Screw : Single Screw

Voltage : 380V or customized

Dimension(L*W*H) : 32*7.6*5.5m

Operation Power (kW) : 266-340

Weight : 15000 KG

Warranty : 1 Year

Applicable Industries : Manufacturing Plant

Warranty of core components : 1 Year

Core Components : Bearing, Gearbox, Screw, Mould

Machinery Test Report : Provided

Raw material : PP/PE/PVC

Usage : plastic forming machine

Cutter : automatically

After-sales Service Provided : Online support or site support

Port : Qingdao

Contact Now

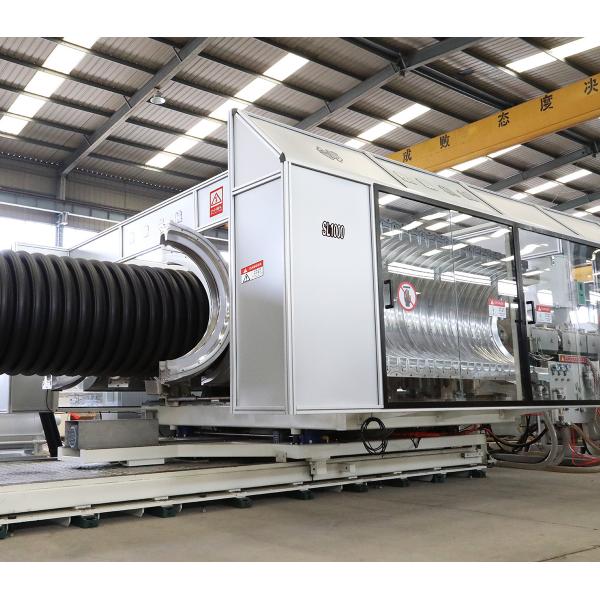

400-1200 mm Single Screw DWC Pipe Manufacturing Line

SUBA LINES FEATURES

1. Excellent performance, stable operation.

2. Provide your customer with high quality and beautiful pipes with optimal profile design.

3. High production speed.

4. Save your labor and power consumption.

5. Stable structure - Horizontal structure.

6. Easier operation system and patented automatic down-stream pro 400-1200 mm Single Screw DWC Pipe Manufacturing Line

ducts, such as: the cutter machine.

TECHNICAL DATE

Model	Pipe range (DN/mm)	Installed power (kW)	Production power (kW)	Moulds number (pairs)	Chain Length (mm)	Max. output (kg/h)	Dimision(LWH) (m)
SL1000	ID400-OD1200	640	266-340	38	6685	1400	327.65.5

EQUIPMENT FEATURES

The whole extrusion line include: extruders, corrugator, cooling tank, cutter, tacker and the toolings.

	EXTRUDERS Single screw extruders and large L/D ratio- 36:1 screws, which has a good plasticization, high output.
	DIE HEAD Short flow channel acheives lowe temperature and low pressure extrusion, which increases production efficiency by 25%. Dynamic adjustment of die head. Less adjustment time- without usage of fastening scerws. Cooling mandrel is made of the aluminium alloy and has a wear resistance layer on the discharge, high cooling efficiency and longer life service life. Fast changeover time.
	CORRUGATOR Closed loop pressure water cooling system-high forming efficiency. Advanced and high-strength structural design ensures stable production. Powerful and high-automatic vacuum Fast moulds' changeover process. Equipped with water temperature control system. Touch screen technology with different languages. PCC control system.
	MOULD Made of high-quality aluminium alloy. Water-cooled moulds guarantee high cooling efficiency and high output. Water temperature control system ensures excellent pipe quality. Moulds are compatible with different corrugators. Fast changeover time.
	CUTTER Chipless cutter enable precise, noiseless and dust-free cutting Innovative trigger mechanism ensures precise cutting. Two modes: automatic and manual operation. Adopts turnable bearings, linear guide rails and dual Italian hydraulic system to acheive center symmetry and smooth operation

EXHIBITION AND CLIENTS VISITING

Suba attends many exhibitions every year: Like K shown, Chinaplas, NPE, and plastics exhibitions in

various countries.Welcome to follow us and visit us!!

CASES

400-1200 mm Single Screw DWC Pipe Manufacturing Line

Suba's pipe designs and extrusion lines are welcomed and recognized by more and more world-renowned

pipe manu-facturers from Russia,England, Ukraine, Austria, Turkey, Syria.Azerbaijan,Uzbekistan,Tajkistan,

Kyrgyzstan, Uruguay, Argentina,Peru, Georgia, India, Malaysia, Indonesia, Vietnam, Philippines, Kenya etc.

Look forward to work with you!

PATENTS AND CERTIFICATIONS

Supporting with many patents and advanced design of Suba lines, Suba lines acheive excellent performance,

high speed and eaiser operation system.

Please don't hesitate to contact us!!!
